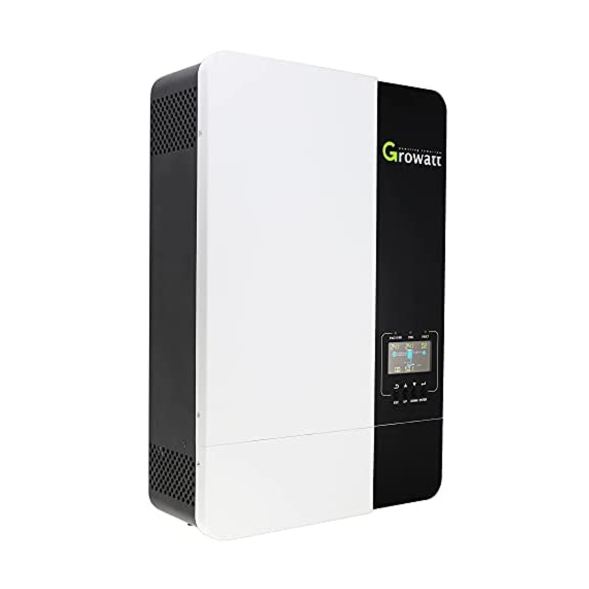

Inverter 5000W 48V Hybrid 1Phase Growatt

The Growatt 5000W 48V Hybrid 1Phase Inverter is a cutting-edge solution for residential solar energy systems. Engineered to optimise power consumption and maximise energy efficiency, this inverter seamlessly integrates solar power generation with advanced energy storage capabilities. Equipped with a user-friendly interface for easy monitoring and control, the inverter also features an integrated intelligent energy management system.

  • Max. output: 30 kW
  • Fully integrated datalogging
  • 10 year warranty
SKU INV-5000W48VH1P-GR Categories , ,


  • Integrated MPPT Charge Controller
  • Equalisation charging function
  • Work with or without a battery
  • PV input voltage up to 450VDC
  • Configurable grid or solar input priority
  • Optional WIFI/GPRS remote monitoring
  • Support parallel operation for capacity expansion up to 30kW
  • PV and grid power the load jointly if PV energy is insufficient
  • Flexibly schedule the inverter charging and discharging time


Battery Specifications

Battery Voltage 48VDC
Battery Type Lithium/Lead-acid

Output Data

Rated Power 5000VA / 5000W
Parallel Capability Yes, 6 units maximum
AC Voltage Regulation (Battery Mode) 230VAC ± 5% @ 50/60Hz
Surge Power 10000VA
Efficiency (Peak) 93%
Waveform Pure sine wave
Transfer Time 10ms typical, 20ms Max

Solar Charger

Maximum PV Array Power 6000W
MPPT Range @ Operating Voltage 120VDC – 430 VDC
Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Solar Charge Current 100A

AC Charger

Charge Current 80A
AC Input Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For personal computers) ; 90-280 VAC (For home appliances)
Frequency Range 50Hz/60Hz (Auto sensing)


Protection Degree IP20
Dimension (W/H/D) 330/485/135mm
Net Weight 12kg

Operating Environment

Humidity 5% to 95% Relative Humidity (Non-condensing)
Altitude <2000m
Operating Temperature 0°C – 55°C
Storage Temperature -15°C – 60°C


Growatt Datasheet PDF
